Heavy-Duty Automatic
Boom Barrier Hardware
Engineered for 3 million continuous operation cycles (S1 Working Duty), imAI automatic boom barrier drive mechanisms provide unyielding physical traffic management for industrial sites, parking facilities, commercial complexes, and gated communities. Powered by a high-torque 24V/200W DC Brushless Motor (BLDC) enclosed in an IP54 weatherproof cabinet.
Featuring multi-stage adjustable opening speeds (2 to 6 seconds), native anti-smashing safety mechanics, integrated cabinet door LED status indicators for driver friendliness, visual clarity & safety, telescopic or folding arm versatility, and direct hardwired controller interfaces for IR photocells, laser safety sensors, AI detection cameras, and traffic light signals.
Turnkey Boom Barrier Supply, Civil Foundation Mounting & Maintenance with On-Site & Remote Technical Support.
Trusted by Premium Facilities Across Tamil Nadu
Industrial Motor Specs & Advanced Controller Logic
Certified electrical and mechanical engineering standards designed to deliver high torque, long operating lifespan, and responsive gate control.
24V BLDC Motor Drive
200W 1000 RPM brushless motor rated for 3M continuous cycles (S1 duty) with zero thermal overheating.
Speed & Convoy Logic
Programmable 2s–6s opening speed with soft deceleration and passage queue memory for rush hour traffic.
Digital L/R & Auto-Reverse
Digital mainboard menu for instant L/R motor swap and electronic current-sensing obstacle auto-reverse.
IP54 Housing & Door LED Light
32 kg IP54 cold-rolled steel cabinet with integrated cabinet door LED status light (Red/Green) for driver visual clarity, night safety, and intuitive passage signals.
Declutch Key Release
External key-operated mechanical release for security guards to lift or lower arm manually during power cuts.
Push-Buttons & 30m Remotes
Standard guard-booth wired push-button console (Open/Stop/Close) + 30m encrypted wireless remotes included.
Compact RF Reader & Smart Tag Access System
Mounted wherever requested (driver window height, booth pole, wall, or desk), this compact RFID reader & tag system serves as a key add-on to standard wireless remotes and push buttons, provided for security personnel's daily convenience and fast tap-to-open gate access.
Technical Data Sheet & Operating Parameters
Certified electrical, mechanical, drive motor, and environmental tolerance standards for imAI 24V BLDC automatic boom barrier systems.
Electrical & Motor Drive
- Operating Voltage 220V–240V AC Single Phase
- Motor Drive System 24V DC BLDC 1000 RPM
- Motor Output Power 200 Watts Zero Overheat
- Working Duty Rating S1 Continuous 3 Million Continuous Working Cycles (24V BLDC S1 Duty)s
- Arm Speed Control 2.0s to 6.0s Soft Stop
Physical Cabinet & Logic
- Housing Dimensions 315 × 222 × 946 mm Compact Base
- Cabinet Net Weight 32 Kg (Steel) Heavy-Duty
- Environmental Rating IP54 Weatherproof -35°C to +70°C
- Remote Frequency 433 MHz Max 20 Remotes
- Guard Station Controls Push-Button Box Hardwired Console
- Door Status Light Cabinet Door LED Red/Green Driver Indicator
- Emergency Operation Mechanical Key Manual Override
Physical Boom Arm Configurations
Tailored arm mechanics engineered for specific entrance heights, lane widths, and security requirements.
Telescopic Straight Arm (Up to 6m)
Extensible high-strength aluminum alloy arm. Adjustable length from 3m up to 6m for wide commercial driveways, toll plazas, and main residential gates.
90° / 180° Articulating Folding Arm
Designed specifically for low-ceiling underground basements and multi-level parking garages. Articulates smoothly without hitting overhead pipes or beams.
Dual / Triple Rail Fence Boom Arm
Provides total height barrier blockage to prevent pedestrians, animals, or two-wheelers from sneaking underneath or stepping over the barrier arm.
Comparison Matrix (imAI 24V BLDC vs Standard AC Barriers)
See how imAI's 24V Brushless DC (BLDC) motor technology outperforms legacy 220V AC motor barriers in continuous duty, safety, speed, and overall maintenance cost.
| Key Feature / Capability |
Standard Legacy AC Barriers
Traditional 220V
AC Motors
|
Recommended
imAI
24V BLDC Motor Barrier
3 Million
Continuous Working Cycles (24V BLDC S1 Duty)
Brushless Drive
|
|---|---|---|
| Motor Tech & Duty Rating | Standard 220V AC Motor (Intermittent duty, frequent thermal shutdowns) | 24V DC Brushless (3 Million Continuous Working Cycles (24V BLDC S1 Duty)s, S1 Continuous 24/7 Duty) |
| Thermal Overload Protection | Trips and locks up during high-density rush hour traffic | Zero thermal heat build-up under constant cycling |
| Speed Control & Motion Smoothing | Fixed 3s–6s speed with mechanical end-bounce shock | Programmable 2s–6s with multi-stage soft deceleration |
| Obstacle Anti-Smashing Safety | Delayed mechanical pressure reverse; high risk of vehicle damage | High-sensitivity electronic current sensing auto-reverse |
| Safety Sensor Installation | Requires asphalt slot cutting for inductive loop detectors | Surface-mounted IR/Laser sensors & imAI AI Cameras (Zero road cutting) |
| Boom Arm Direction Swap | Complex mechanical gear dis-assembly and re-wiring | Simple parameter toggle on mainboard digital display |
| Power Outage Emergency | Requires internal bolt removal or manual crank wheel | Quick turn of external declutch key for instant manual operation |
| Operating Lifespan & Service | Frequent carbon brush replacement and gearbox maintenance | Maintenance-free brushless drive with extended operating life |
Civil Foundation & Mounting Services
Deploying an automatic boom barrier requires precise civil foundation work, rigid cabinet anchor mounting, and calibrated sensor alignment. imAI Technologies provides complete end-to-end site execution across Tamil Nadu.
RCC Foundation Base
Site excavation, reinforced concrete base casting, J-bolt anchor positioning, and heavy cabinet alignment.
Surface Safety Sensors
Non-intrusive surface mounting with IR photocells, laser safety sensors, or integrated imAI AI Detection Cameras (zero road cutting required).
Spring Tuning & Maintenance
On-site motor deceleration tuning, arm balance spring calibration, local spare parts stock, and AMC contracts.
Standard 4-Step Execution Workflow
1. Entrance Survey
Measuring driveway width, overhead height clearance, traffic direction, and electrical conduits.
2. Foundation Base
Casting reinforced RCC concrete block with embedded J-bolts for vibration-free mounting.
3. Machine & Sensors
Bolting housing, connecting push-button booth console, and setting up non-intrusive safety sensors.
4. Tuning & Handoff
Calibrating spring balance, configuring 2s–6s deceleration curves, testing auto-reverse, and staff training.

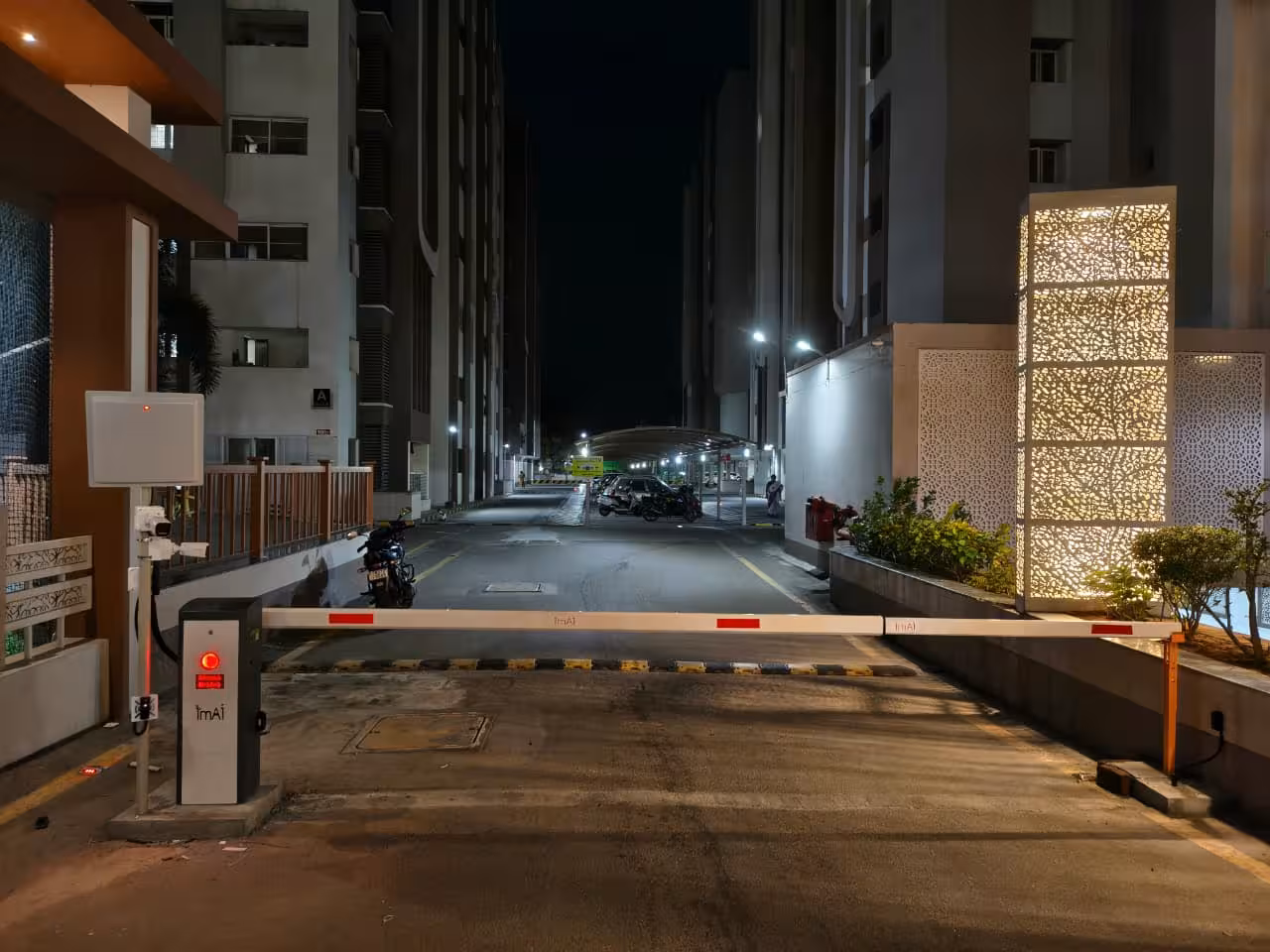

Physical Gate Installations in Tamil Nadu
Inspected, civil-mounted, and maintained by imAI engineering teams for heavy residential and industrial traffic flow.
Trusted by Facility Managers Across Tamil Nadu
Real feedback from our deployments. Click any review to verify it directly on Google.
100% real reviews. Click any card to verify it on Google.
Hardware & Mechanical FAQs
Frequently asked questions regarding motor specs, arm direction swaps, anti-smashing safety, and civil installation.
Request Your Mechanical Boom Barrier Quote
Consult with our hardware engineers to determine motor wattage, arm lengths, safety sensor setup, and schedule an on-site installation survey in Chennai or Coimbatore.
